DAIHATSU 8DKM28.- AIR COOLER WITH COVERS
DAIHATSU 8DKM28 Air Cooler With Covers | Complete Assembly, Core, Housing & Spare Parts
Complete Charge Air Cooling Solution: The DAIHATSU 8DKM28 Air Cooler With Covers is a critical component for maintaining optimal charge air temperature, combustion efficiency, and reliable marine engine performance. The complete assembly includes the air cooler core, housing, inlet cover, outlet cover, cover gaskets, and associated sealing components.
As YAF Diesel, we supply DAIHATSU 8DKM28 air cooler assemblies, cooler cores, inlet/outlet covers, gasket sets, and related marine engine spare parts for shipowners, vessel operators, technical managers, and engine overhaul companies worldwide.
Corroded air cooler covers, damaged gasket surfaces, or restricted cooling water passages may cause higher charge air temperatures, reduced combustion efficiency, increased fuel consumption, and potential engine performance loss.

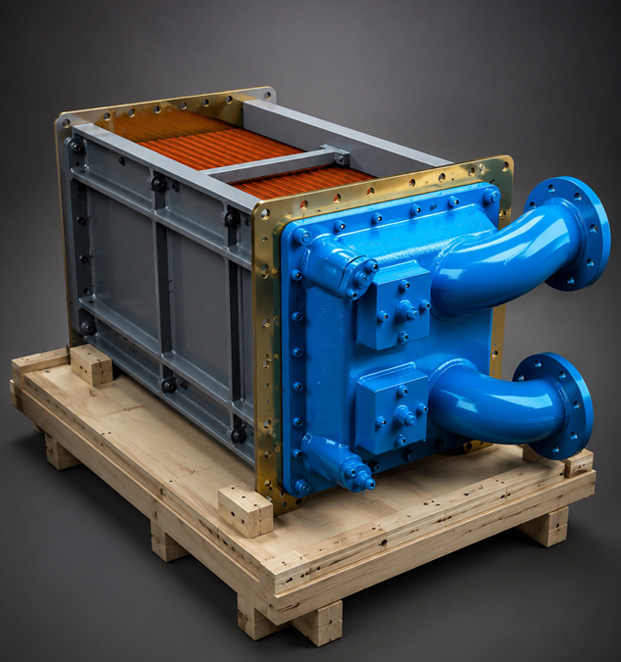

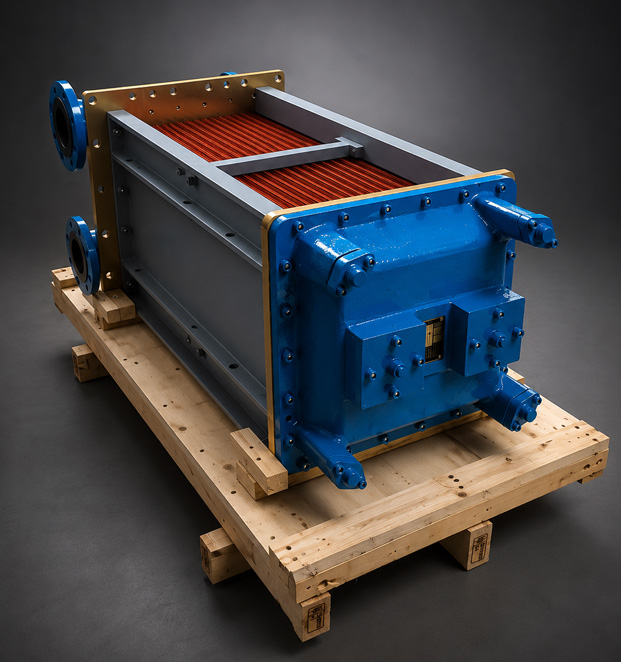

DAIHATSU 8DKM28 Air Cooler Assembly Overview
The DAIHATSU 8DKM28 air cooler, also known as a charge air cooler or marine engine intercooler, cools compressed intake air before it enters the engine cylinders. By reducing intake air temperature, the cooler helps increase oxygen density, support efficient combustion, lower exhaust gas temperature, and maintain stable engine output.
For the Daihatsu DK-28 engine series, the air cooler assembly must be maintained with correctly specified materials, reliable cover sealing, clean cooling water passages, and properly fitted replacement components. YAF Diesel supports customers with verified air cooler and cover components suitable for marine diesel engine applications.
DAIHATSU 8DKM28 Air Cooler & Cover Components
| Component | Function / Description |
|---|---|
| Air Cooler Core | The heat exchanger matrix that cools compressed intake air before combustion. |
| Cooler Housing | Main body structure that holds the cooler core and supports air and cooling water flow. |
| Inlet Cover | Guides cooling water into the air cooler core and helps distribute flow correctly. |
| Outlet Cover | Directs cooling water discharge from the cooler and supports stable circulation. |
| Cover Gaskets | Seal the covers against the housing to prevent air, water, and pressure leaks. |
| Sacrificial Anodes | Help protect internal cover surfaces and cooling water passages against galvanic corrosion. |
| Fasteners & Sealing Parts | Bolts, washers, O-rings, and sealing parts required during replacement or overhaul. |
Why Air Cooler Covers Are Critical for DAIHATSU 8DKM28 Engines
The air cooler covers, also known as end covers, are exposed to continuous cooling water flow and marine operating conditions. Their internal surfaces are highly susceptible to galvanic corrosion, erosion, cavitation marks, gasket seat wear, and sacrificial anode decay. If the covers are not properly maintained, cooling efficiency may decrease and leakage risk may increase.
Replacing worn or corroded cooler covers during a scheduled overhaul helps protect the air cooler core, maintain proper charge air cooling, reduce unplanned downtime, and support long-term engine reliability.
Common Maintenance Needs for DAIHATSU 8DKM28 Air Cooler With Covers
- Air cooler core cleaning and inspection
- Inlet and outlet cover inspection
- Galvanic corrosion control
- Sacrificial anode replacement
- Cover gasket replacement
- Cooling water passage cleaning
- Gasket seating surface inspection
- Pressure testing after reassembly
- Air and water leakage control
- Charge air temperature monitoring
DAIHATSU 8DKM28 Air Cooler Spare Parts We Can Supply
- Complete Air Cooler Assembly
- Air Cooler Core
- Air Cooler Housing
- Inlet Cover
- Outlet Cover
- End Cover Gaskets
- Cooling Water Sealing Components
- Sacrificial Anodes
- Fastener Sets
- O-Rings and Sealing Kits
- Marine Engine Cooler Spare Parts
- OEM-Spec Replacement Components
Technical Supply Support for Daihatsu DK-28 Series
YAF Diesel supports customers with sourcing and technical supply for Daihatsu marine diesel engine spare parts, including air cooler components for the DAIHATSU 8DKM28 engine. Depending on your requirement, we can assist with complete cooler assembly supply, individual cover replacement, gasket kits, and overhaul-related spare parts.
For the most accurate quotation, customers are advised to share the engine model, serial number, part number if available, vessel name, required quantity, and photos of the existing air cooler or covers. This helps ensure correct matching and faster technical confirmation.
Frequently Asked Questions About DAIHATSU 8DKM28 Air Cooler With Covers
What is included in a DAIHATSU 8DKM28 air cooler assembly?
What does the DAIHATSU 8DKM28 air cooler do?
Why do air cooler covers fail in marine diesel engines?
Can damaged air cooler covers affect engine performance?
Do you supply OEM-spec DAIHATSU 8DKM28 air cooler spare parts?
What information is required for quotation?
