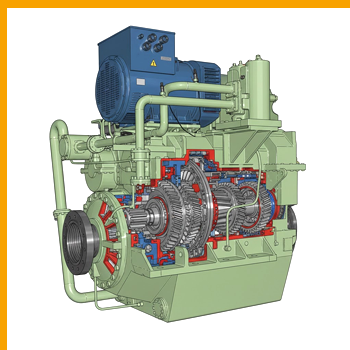

YAF Diesel is a specialized supplier for CHONGQING GWL8095 marine gearbox solutions. This heavy-duty, two-stage propulsion gearbox features coaxial input and output shafts with a main clutch. Engineered for large commercial vessels, it provides reliable torque transmission with a reduction ratio range of 2.0–7.0 and a power factor up to 26.52 kW/rpm.

Description & Features

The GWL8095 provides a compact footprint for high-torque ship propulsion. With a rated thrust of 1280 kN, it is engineered to transmit substantial propeller loads while maintaining stable operation under continuous service.

• Coaxial shaft layout simplifies shaft-line design and alignment.
• High rated thrust of 1280 kN for heavy propeller loads.
• Optimized lubrication: oil pressure 0.04–0.4 MPa, oil temperature ≤ 80 °C.
• Heavy construction with an approximate net weight of 31,000 kg.

Technical Specifications (Chongqing GWL8095)

Performance Data Matrix (GWL8095)

Workshop & Quality Assurance

All components are inspected, measured and tested before dispatch. We support GWL- and GWC-series overhauls, MPI crack detection, and dynamic balancing at our Tuzla - Istanbul hub.
