ADVANCE GWL 36.39 SPARE PARTS

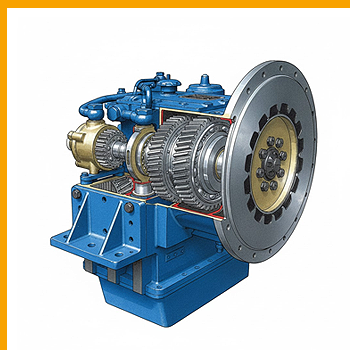

HANGZHOU ADVANCE GWL 36.39 Marine Gearbox Spare Parts
● Price available upon request
As YAF Diesel, we supply complete spare parts and overhaul solutions for the HANGZHOU ADVANCE GWL36.39. This heavy-duty, two-stage propulsion gearbox is designed for efficient power transmission and reliable propeller thrust handling of 140 kN.
- Input & Output Shafts
- Clutch Plate Sets
- Gear Wheels & Pinions
- Oil Pumps & Filters
- Complete Overhaul Kits
- Control Valves
Advance GWL Series Full Range Data Matrix
All models listed below are supported with spare parts and technical service.
| Model Code | Input Speed | Reduction Ratio | Trans. Capacity | Rated Thrust | Net Weight |
|---|---|---|---|---|---|
| GWL28.30 | 400–2000 r/min | 2.06–6.14 | 0.865–0.29 kW/r/min | 80 kN | 1070 kg |
| GWL30.32 | 400–2000 r/min | 2.03–6.05 | 1.122–0.376 kW/r/min | 100 kN | 1240 kg |
| GWL32.35 | 400–2000 r/min | 2.06–6.08 | 1.4175–0.48 kW/r/min | 120 kN | 2240 kg |
| GWL36.39 | 400–1900 r/min | 1.97–5.97 | 1.92–0.634 kW/r/min | 140 kN | 2700 kg |
| GWL39.41 | 400–1700 r/min | 1.98–5.99 | 2.585–0.852 kW/r/min | 175 kN | 3550 kg |
| GWL42.45 | 400–1600 r/min | 2.00–5.93 | 3.28–1.106 kW/r/min | 220 kN | 4190 kg |
| GWL45.49 | 400–1600 r/min | 1.97–5.98 | 4.240–1.398 kW/r/min | 270 kN | 5350 kg |
| GWL45.52 | 400–1400 r/min | 1.97–6.04 | 4.648–1.51 kW/r/min | 270 kN | 6500 kg |
| GWL49.54 | 400–1400 r/min | 1.94–6.00 | 5.500–1.861 kW/r/min | 290 kN | 7000 kg |
| GWL49.59 | 400–1200 r/min | 2.03–6.01 | 6–2.1 kW/r/min | 290 kN | 8200 kg |
| GWL52.59 | 400–1200 r/min | 1.93–5.93 | 7.438–2.426 kW/r/min | 300/360 kN | 8955 kg |
| GWL52.62 | 400–1200 r/min | 2.02–5.96 | 7.756–2.631 kW/r/min | 300/360 kN | 9300 kg |
| GWL60.66 | 400–1200 r/min | 2.01–6.12 | 9.913–3.261 kW/r/min | 450/540 kN | 13290 kg |
| GWL60.74 | 400–1200 r/min | 1.99–6.94 | 11.409–3.273 kW/r/min | 550 kN | 15100 kg |
| GWL66.75 | 300–950 r/min | 2.05–6.12 | 13.866–4.650 kW/r/min | 730 kN | 17500 kg |
| GWL70.76 | 300–950 r/min | 2.05–6.17 | 15.643–5.191 kW/r/min | 750 kN | 20000 kg |
| GWL70.82 | 300–1150 r/min | 2.05–7.49 | 17.451–4.771 kW/r/min | 780 kN | 25500 kg |
| GWL70.85 | 300–950 r/min | 1.98–6.05 | 19.2–6.269 kW/r/min | 800 kN | 26000 kg |
| GWL75.90 | 300–950 r/min | 2.01–6.02 | 22.423–7.489 kW/r/min | 980 kN | 31500 kg |
| GWL78.88 | 300–950 r/min | 2.04–6.09 | 23.372–7.830 kW/r/min | 1000 kN | 32000 kg |
| GWL80.95 | 200–800 r/min | 1.98–5.93 | 28–9.33 kW/r/min | 1200 kN | 37000 kg |
| GWL85.100 | 200–1000 r/min | 1.98–7.05 | 35–9.920 kW/r/min | 1400 kN | 56500 kg |
Request Technical Quote for Advance GWL Series
