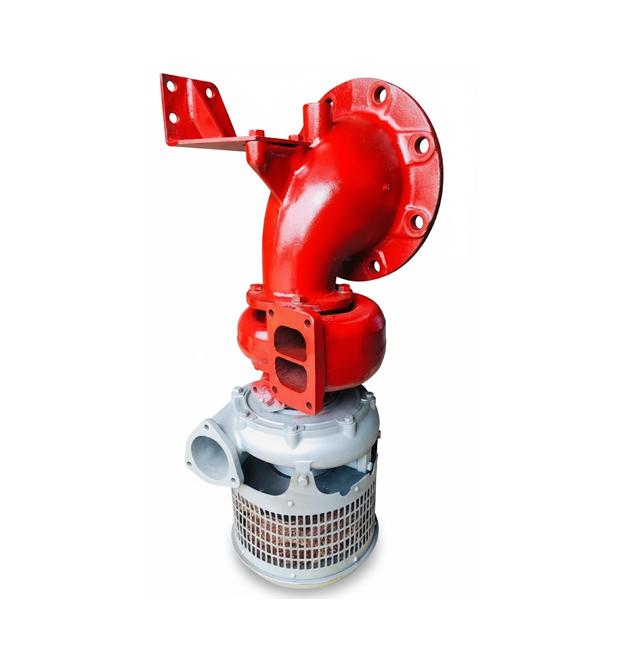

IHI TURBOCHARGER R183 SPARE PARTS
As YAF Diesel, we supply a comprehensive range of spare parts for the IHI R183 turbocharger used on large marine and power-plant diesel engines. From rotor shafts, turbine blades, and gear oil pumps to nozzle rings, bearings, impellers, and gas inlet/outlet casings, we support your periodic maintenance and overhauls with Genuine, OEM, and certified reconditioned options.
IHI R183 Spare Parts Available From Stock

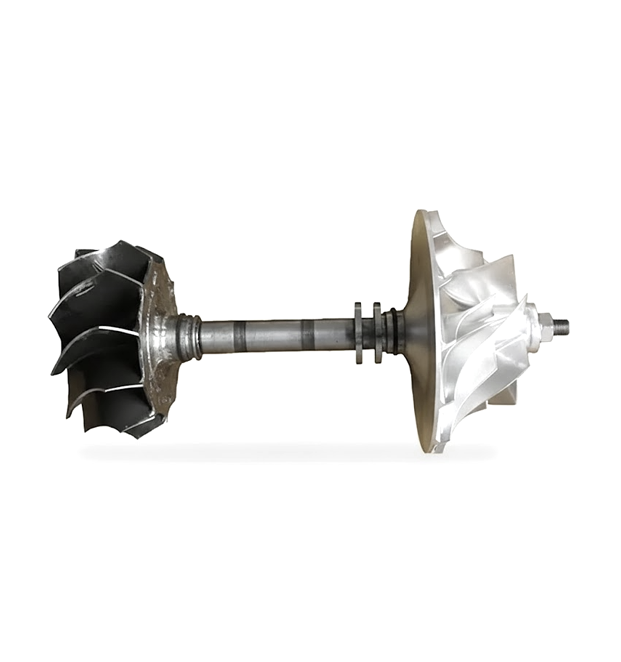

- Rotor Shaft / Rotor Complete
- Compressor Wheel (Impeller, Inducer)
- Turbine Blades
- Nozzle Ring & Cover Ring
- Plain & Axial Bearings
- Sealing Bush Set
- Gear / Lube Oil Pumps & components
- Gas Inlet Casing
- Gas Outlet Casing
- Gasket & Overhaul Kits
- Filters & Silencers
Technical Specifications (IHI R183)
| Make | IHI |
|---|---|
| Type | R183 |
| Max. Speed | 1150 /N max |
| Max. Temp. | 650°C |
| P/N | Description |
|---|---|
| 1001 | Turbine Shaft |
| 1002 | Thrust Collar |
| 1004 | Distance Piece |
| 1006 | Sealing Bush |
| 1008 | Shaft End Hexagon Nut |
| 1009 | Seal Ring (Turbine Side) |
| 1010 | Seal Ring (Compressor Side) |
| 2001 | Compressor Wheel |
| 3001 | Compressor Housing |
| 3002 | Compressor Side Clamp |
| 3003 | Hexagon Head Bolt M8×16 |
| 4001 | Turbine Housing |
| 4002 | Turbine Side Clamp |
| 4004 | Hexagon Head Bolt M10×20 |
| 5001 | Bearing Housing |
| 5002 | Snap Ring |
| 5003 | Hexagon Head Bolt M6×30 |
| 5004 | Spring Lock Washer 6 |
| 5005 | Heat Shield |
| 5006 | O-Ring G90 |
| 5007 | Parallel Pin |
| 5008 | O-Ring |
| 5013 | Metal Seal Gasket |
| 5014 | Plug |
| 6001 | Seal Plate (Turbine Side) |
| 6002 | Floating Journal Bearing |
| 7001 | Floating Journal Bearing |
| 7002 | Thrust Bearing |
| 8001 | Silencer |
| 8002 | Air Filter |
| 8003 | Hexagon Head Bolt M8×34 |
| 8004 | Spring Lock Washer 8 |
| — | Turbine Housing 70-1 |
| — | Turbine Shaft 10-1 |
| — | Compressor Wheel 20-1 |
| — | Floating Journal Bearing 60-1 |
| — | Thrust Housing 60-2 |
| — | Bearing Housing 50-1 |
| — | Heat Shield 50-7 |
| — | O-Ring 50-6 |
| — | Snap Ring 50-3 |
| — | Sealing Bush 10-5 |
| — | Thrust Collar (Bearing Side) 10-2 |
| — | Thrust Collar (Compressor Side) 10-4 |
| — | Sealing Ring 10-7 |
| — | Distance Piece 10-3 |
Genuine, OEM & Reconditioned Solutions
- Genuine: Certified original IHI R183 parts sourced from the OEM.
- OEM: Quality parts to original manufacturer standards at competitive pricing.
- Reconditioned: Certified, warrantied main components (e.g., rotor, casings), balanced and tested for urgent or cost-effective requirements.
Workshop & Quality Assurance
Our well-equipped workshop and logistics center are designed to ensure full in-house testing, calibration, and inspection of turbocharger components before dispatch. All major parts undergo strict dimensional and performance controls to guarantee reliability and compliance with marine standards.
- Sandblast Cleaning
- Calibration & Measurement
- Ultrasonic Thickness Check
- MPI Crack Detection
- Hardness Testing
- Bending & Trueness Check
- Dynamic Balancing (as applicable)
- Class & 3rd-Party Inspection Support
Note: We arrange in-house inspections for class approval or third-party surveys upon request.
Auxiliary Engine Major Spares
In addition to turbocharger parts, we supply major spares for auxiliary engines:
- Cylinder Head / Cylinder Cover
- Cylinder Liner / Block
- Piston / Piston Pin / Rings
- Connecting Rod
- Crankshaft / Flywheel
- Bedplate
- Camshaft
- Fuel Pump / Governor (Woodward, etc.)
- Lub Oil Pump / Fresh Water Pump
- Oil & After Coolers
- Heat Exchangers
- Indicator Cocks / Head Gaskets
Why Choose YAF Diesel?
- Extensive Stock: Fast response to urgent IHI R183 requirements from Turkey.
- Technical Support: Guidance on operation, maintenance, and troubleshooting.
- Global Delivery: Rapid, reliable delivery to ports worldwide.
Get a Quote for IHI R183 Parts
Send us your parts list or specific part numbers for availability, pricing, and lead time.
